Speed Gates

EasyGate SPT Interlock

Introducing the EasyGate SPT Interlock Speed Gates bring With anti-vault detection and dual barriers, the EasyGate Interlock Speed Gates are the ideal speed gate solution for higher-risk areas. Unique in having four wings, it enhances the security offered and further enhances the anti-tailgating capability of speed gates.

See Gallery

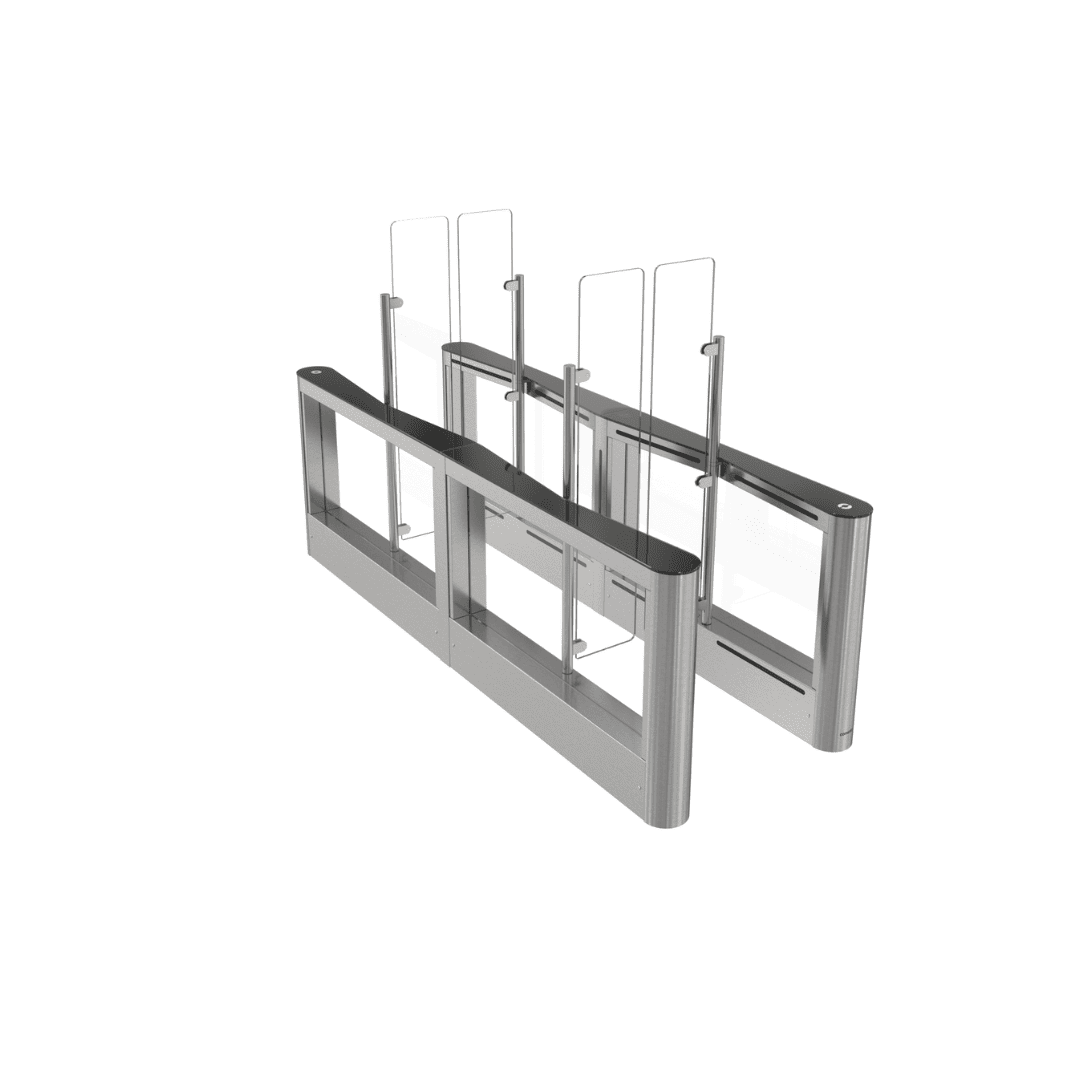

Interlock Speed gates

The EasyGate Interlock Speed Gates are an ideal solution for high security areas. With dual barriers, high glass wings, and anti-vault detection, the risk of tailgating and climb over attempts is significantly reduced. It also has 75 pairs of IR sensors, resulting in highly accurate readings for tailgating and crossover detection. On top of this, the Interlock speed gates operate well thanks to the low-maintenance, brushless operation of the Patented Magnetic Direct Drive system. Additionally, the increased security on the Interlock is evident in the extra-high wings. This also means they serve as a visual deterrent to potential unauthorised building users. Despite their excellent functionality and enhanced security, these speed gates still offer an unobtrusive, stylish look in any environment. Overall, this offers the ultimate balance of safety and aesthetics.

  • Anti-Tailgating
  • Anti-Vault
  • Connectivity
  • Low Throughput
  • Medium-Security
  • Wheelchair Access

Benefits to your business

  • Climb over detection
  • MCBF 20 million
  • Tailgating and cross over detection
  • 75 pairs of IR sensors for greater accuracy
  • Patented magnetic drive system
Dimensions
External Width/Depth 988mm
Internal Diameter 820mm
Entrance Width 600mm
Internal Height 2048 – 2050mm
External Height 2382mm S Version
2320mm R Version
Portal Weight per glass type
P2A 360Kg
P4A 390Kg
P6B & BR3 580Kg
Standard Features
Version S version: welded portal structure with 70mm floor base
(recessed or surface mounted)
Safety Features Anti-slip Floor mat
Emergency unlocking device
Fail secure
IR safety sensors
Internal LED light
Fire alarm signal
Security Ratings FB2/NS EN 1522 Top Canopy
FB4/NS EN 1522 Metal Structure
Glass Vandal Resistant glass P2A-EN 356
Control Service mode keyswitch or Multi-function control panel
Outer Finishing RAL colour (sliding door frames RAL 9005 – black)
Detection Devices Infrared presence sensors
Push button, signals and remote access Intercom (included in the traffic light)
LED Traffic lights
Emergency Lever Options Emergency lever, handle or crank
