Speed Gates

Easygate SPT Speedgate

EasyGate SPT Speed Gates are strong, secure, and open in just half a second, perfect for high-traffic areas. The low-maintenance brushless operation ensures reliability and durability, while the high glass wings enhance security without compromising style.

See Gallery

Easygate SPT-R Speedgate
Easygate SPT-G Speedgate

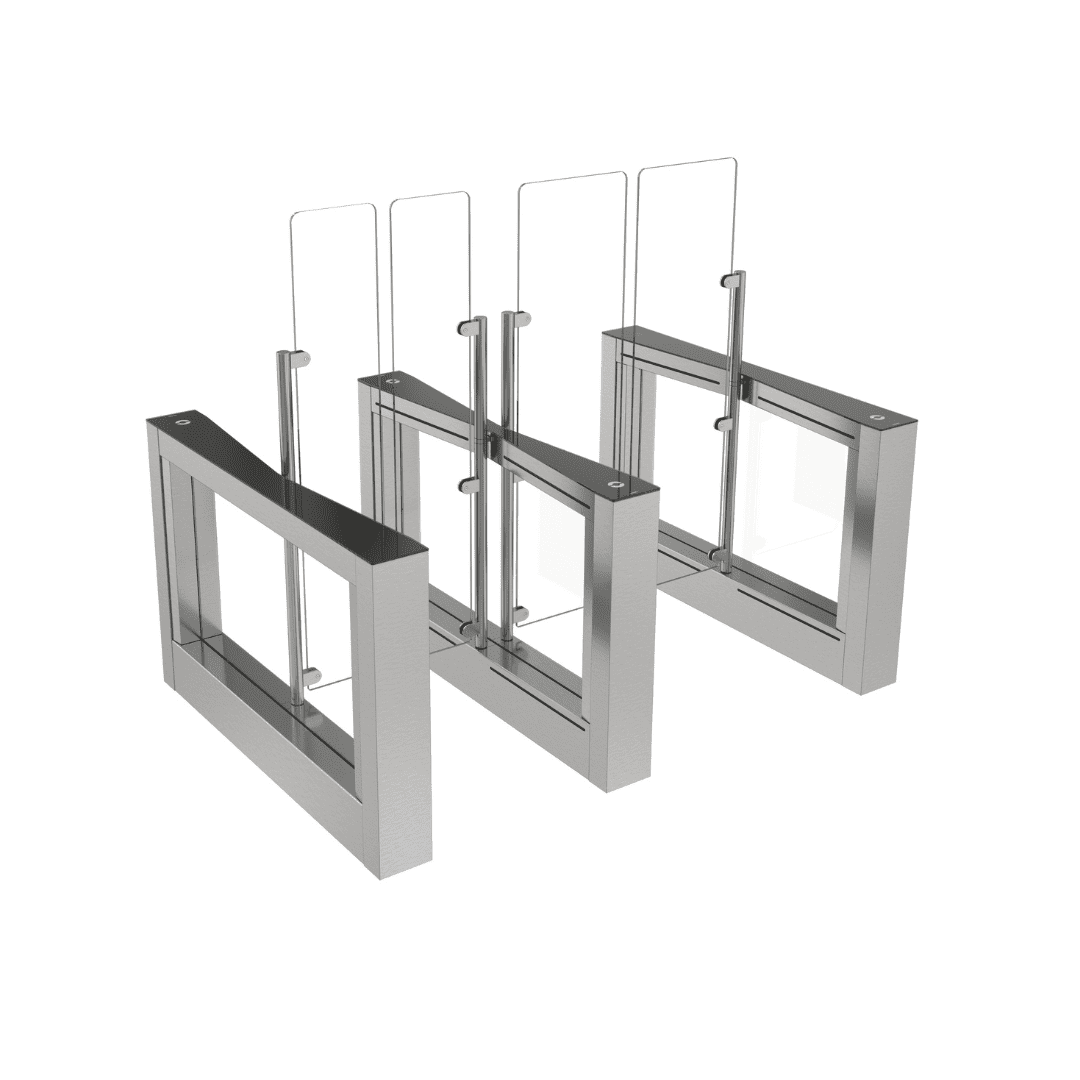

Easygate SPT-R Speedgate
Easygate SPT-G Speedgate

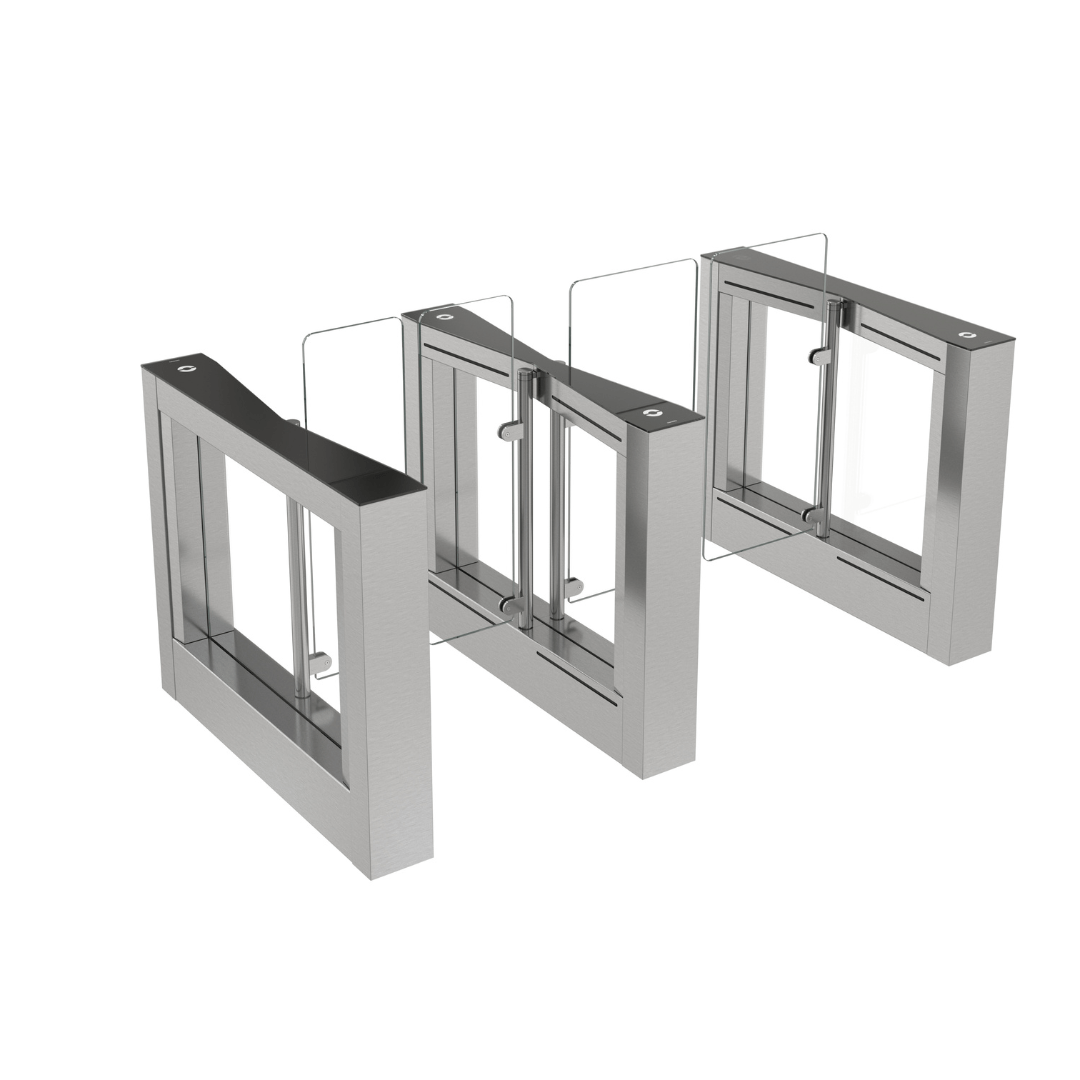

The EasyGate SPT is a high wing Speed Gate that offers a solid yet compact design in one solution available in both a rounded (G) and squared (R) end cabinet design. With an opening barrier time of 0.5 seconds, the SPT Speed Gates are ideal for high throughput areas in busy environments. In addition, it features a maximum locking performance with a hardened tooth lock brake and low maintenance brushless operation with a Patented Magnetic Direct Drive; it can deliver strength and security performance. The EasyGate SPT Speed Gates are available with 1800mm high glass wings as a subtle deterrent to intruders without compromising their stylish appearance. And, with optional accessories, including integrated lift call display and a Touch Panel, the EasyGate SPT Speed Gates can adapt to a building for a seamless user-experience, making the perfect building journey.

  • Anti-Tailgating
  • Connectivity
  • High Throughput
  • Medium-Security
  • Wheelchair Access

Benefits to your business

  • Anti-tailgating
  • Climb-over detection
  • Patented Magnetic Direct Drive
  • MCBF 25 million cycles
  • 650N holding force
  • Aesthetic customisability
Easygate SPT Standard Features Options
Dimensions
Cabinet Height 990mm
Cabinet Length 1200mm/1500mm
Cabinet Width 180mm
Barrier Height 1200mm/1800mm
1 Wing Passage Width Standard 550mm, Max 600mm
2 Wing Passage Width Standard 650mm,
1800mm Wings Max 1200mm,
2200mm Wings Max 1000mm
Operation
Power Supply 230V AC
Range of Operating Temperature 10°C to +50°C, -25°C to +50°C with heating module
Communication Interface RS-485/ USB/ Ethernet
Operating Environment Indoor Outdoor version
Control Panel EasyTouch, Touch panel, TMON control panel
Safety and Security
Sensors 1200mm cabinet: 24 pairs 1800mm cabinet: 36 pairs Sensor wall
Detection Tailgating, cross over and climb over detection Anti-vault detection
Emergency Mode Open manually or automatically Power back-up
Brake Control Function Hardened tooth lock brake, 650N holding force 1050N holding force
MCBF 25,000,000 cycles (Based on recommended maintenance schedule)
Materials and Design
Wings Glass Wing (10mm, tempered) Flag shaped wings, Low iron glass wings, Wing lights, Glass manifestation
Base and Housing Brushed Stainless Steel RAL powder coated steel, Black/ Gold/ Bronze Stainless Steel
Top Lid Black Glass Panel Corian, Stainless Steel with Black Glass Corners, Stone, Wood
Cabinet Design Rounded and Squared Ends LED lane light, Passage light
Technology
Access Control Integrated 3rd party terminals – lift controller/ ticket readers/ biometrics
Visitor Management Integrated visitor card collector
